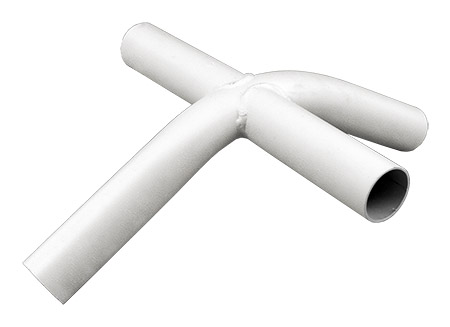

1-3/8" High Peak 4-Way Canopy Fitting

1-3/8" High Peak 4-Way Canopy Fitting - White Powder Coated

4WAY138-W

View Detailed Images 4 View Detailed Images 4 View Detailed Images 4 View Detailed Images 4

Description
Specifications
Send to Friend

Product Summary

The 1-3/8" 4-Way Canopy Fitting - White Powder Coated is designed to be used to form the middle sections of a high peak canopy frame. The angle formed by this fitting is 120 degrees (rise angle of 30 degrees). At this angle, the canopy rafters will rise at a rate of 6.9" / linear foot. Our white canopy fittings are crafted from 16 gauge powder coated steel with fully welded corners and connections.

Application(s)

Forms the middle sections of a high peak canopy frame.

High Peak Angle

The angle formed by this fitting is 120 degrees (rise angle of 30 degrees)

Features

Extremely durable white powder coated finish to resist rust and corrosion

Designed to be used to form the middle sections of a canopy frame

Designed for use with 1-5/16" outer diameter pipe

Outer Diameter (OD): 1-1/2"

Inner Diameter (ID): 1-3/8"

Leg Length: 5"

Peak Angle: 120º

Thickness: 16 gauge
